Butler Robot
Butler Robot

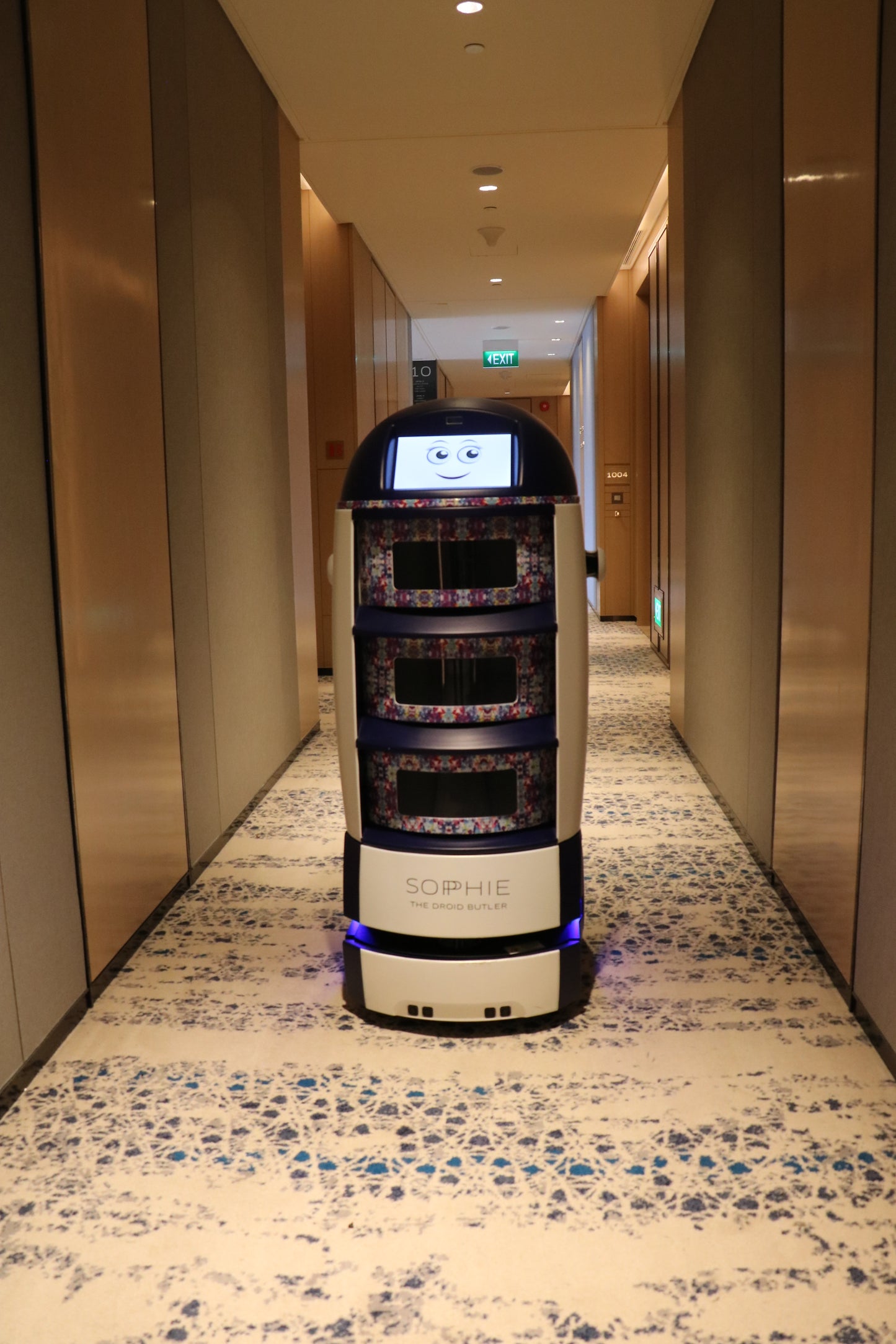

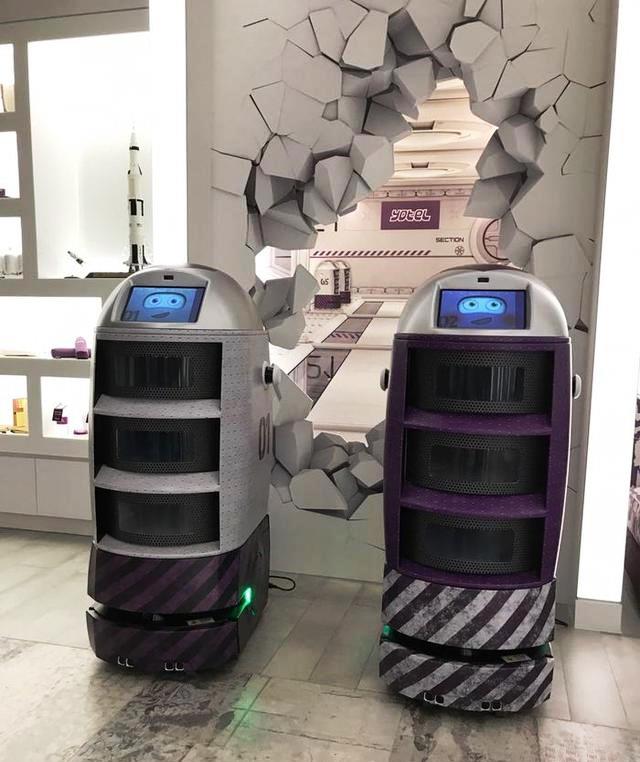

The TRV Butler can do two to three deliveries in one trip. Securely delivers meals, towels, and beverages throughout the facility. Each of its delivery bays can be equipped with insulation layers. TRV Butler has third-party interoperability to access the elevator to make multi-floor deliveries, either scheduled or on demand. The Robot does all the runners’ jobs so that your staff has free time to focus on their primary tasks.
Key Features:
Key Features:
- Safety Certified key components used (i.e CE/UL Certified LIDARS, Motor Controllers)
- Premium, reputable key components used (i.e Safety LIDARS are from SICK UK or Equivalent)
- Drives come with 10 Nm Powerful Passive Brakes for enhanced safety.
- 10 Years of AMR Product Development Experience incorporated into Mobile Navigation.
- Our Premium Series houses a "Parallel Safety Monitoring and Controlling Unit" in addition to our standard series' features, suitable for customers who prefer Enhanced Safety Features.
Specifications:
Specifications:
- Standard Compartment Size: 17" (L) x 12" (W) x 6" (H)
- Large Compartments Size: 17" (L) x 12" (W) x 10" (H)
- Payload: 150 lbs. (70kg)
- Maximum Speed: 1.2 m/s
- Navigation: Autonomous routing by LIDAR SLAM technology
- Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1
- Drive wheels: Differential Drives (BLDC
low noise motors), 2 wheels - Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation
- Docking Station: 100 to 240 VAC, 50 to 60 Hz
