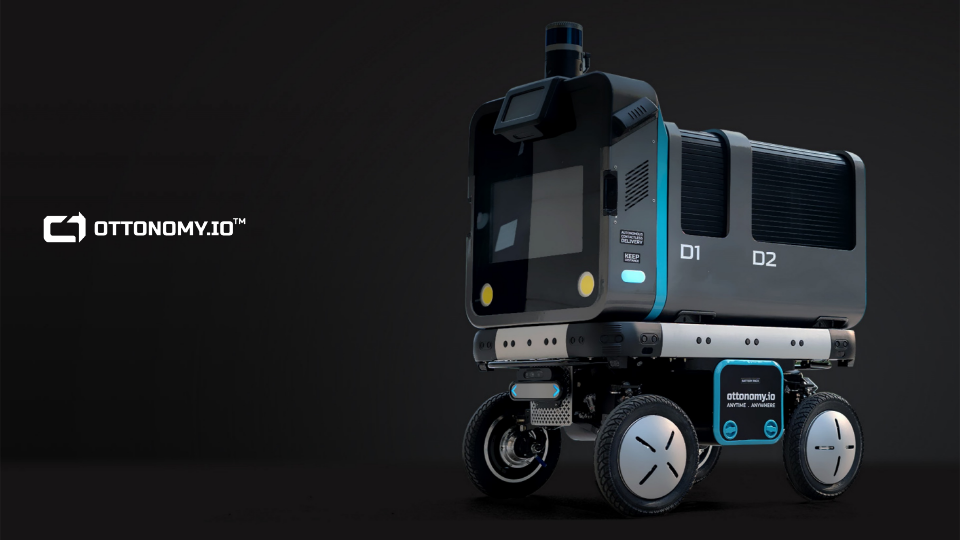

Ottonomy Robot

Ottonomy Robot

Key Features:

  • Multiple ultrasonic obstacle detection sensors.
    (3D + 2D mapping sensors, LiDAR scanner and camera.)

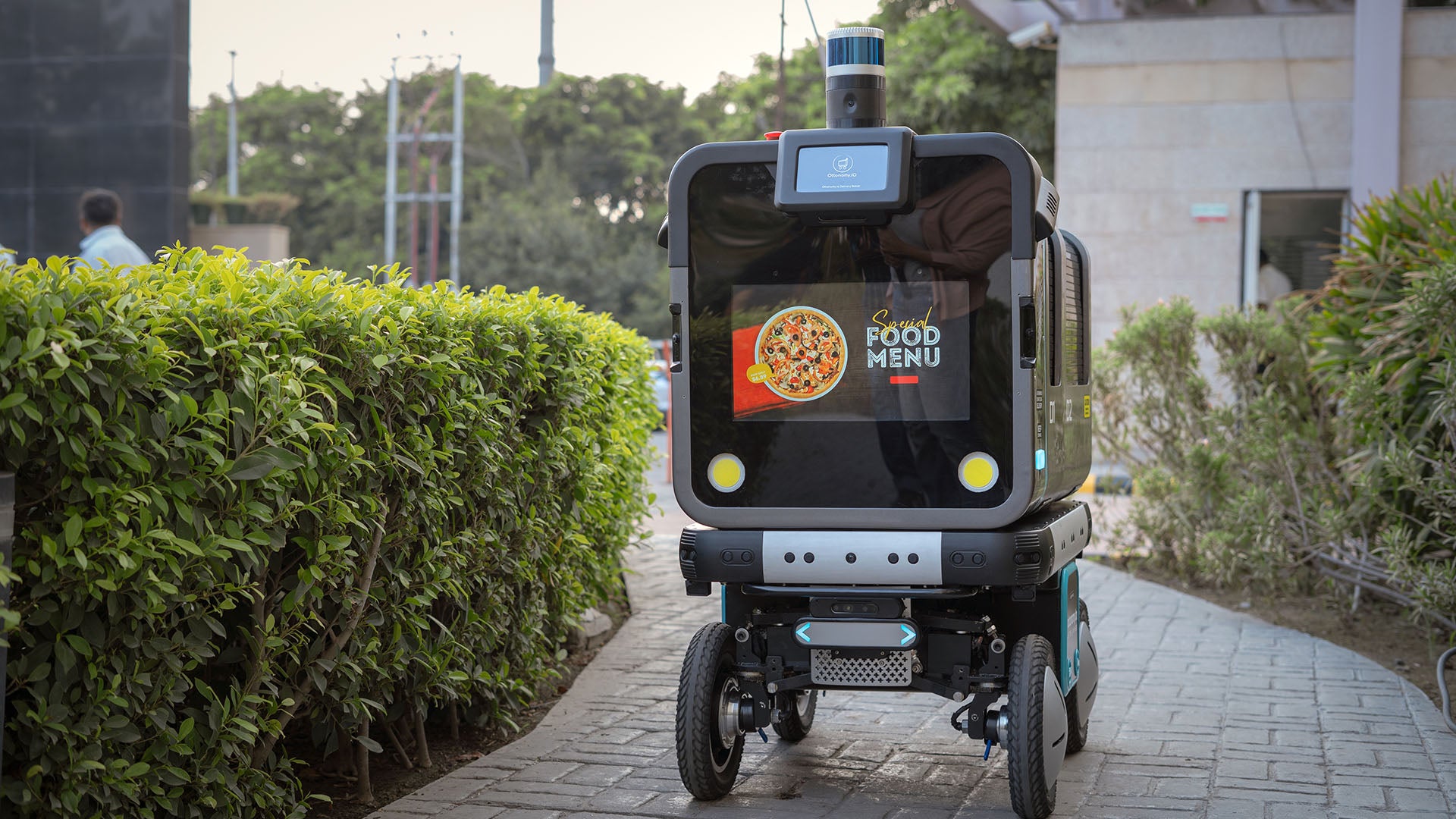

  • 2 display screens & Customisable brand skinning.
    - 7 inch touch screen for advertisement, messaging, interaction, debugging etc.
    - 13 inch, LED screen for advertisement and messaging.
  • Max speed 6 km per hour.
  • Multi terrain capable
    omnidirectional steering.
  • Swappable, ECO efficient battery pack.
  • Cloud based operations system.

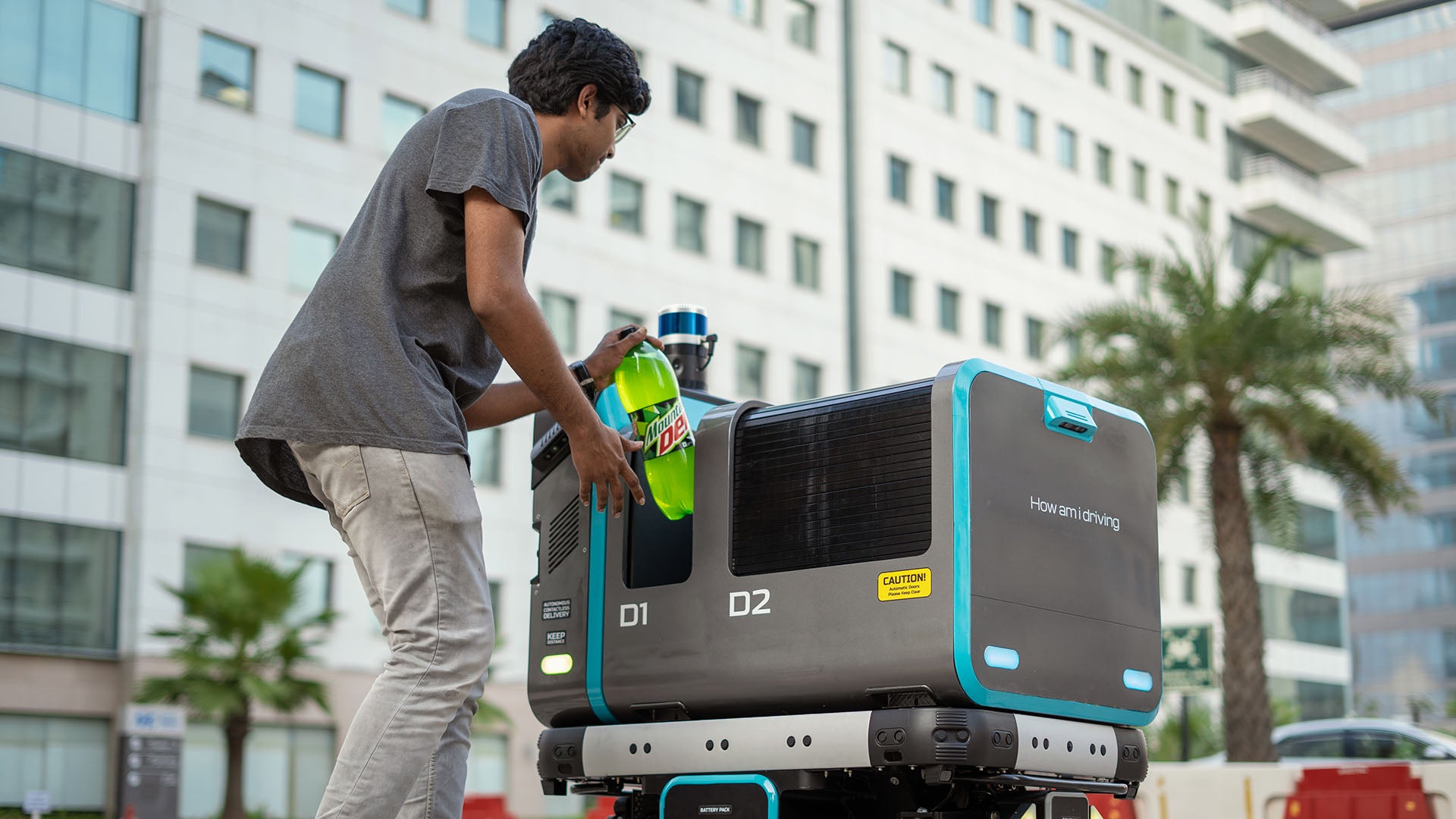

  • Flexible automated cabin compartment options: single, double or multi.
  • 80Kg loading tray capacity
    + Automated delivery hatch.

Specifications:

  • Material: Aluminum alloy chassis with ABS casing
  • Payload: 150 lbs. (70kg)
  • Maximum Speed: 1.2 m/s
  • Navigation: Autonomous routing by LIDAR SLAM technology
  • Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1
  • Drive wheels: Differential Drives (BLDC
    low noise motors), 2 wheels
  • Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation
  • Docking Station: 100 to 240 VAC, 50 to 60 Hz
View full details

Ottonomy Robot Awards

  • WINNER

    The SustainabilityProduct

    of the Year Award for 2021
    Business Intelligence Group

  • TOP 50

    Listed in the Top 50 Robotics companies
    worldwide in 2021
    Robotics Business Review

  • WINNER

    The Mobility Startup Award
    Plug & Play Accelerator
