Stack Robot
Stack Robot

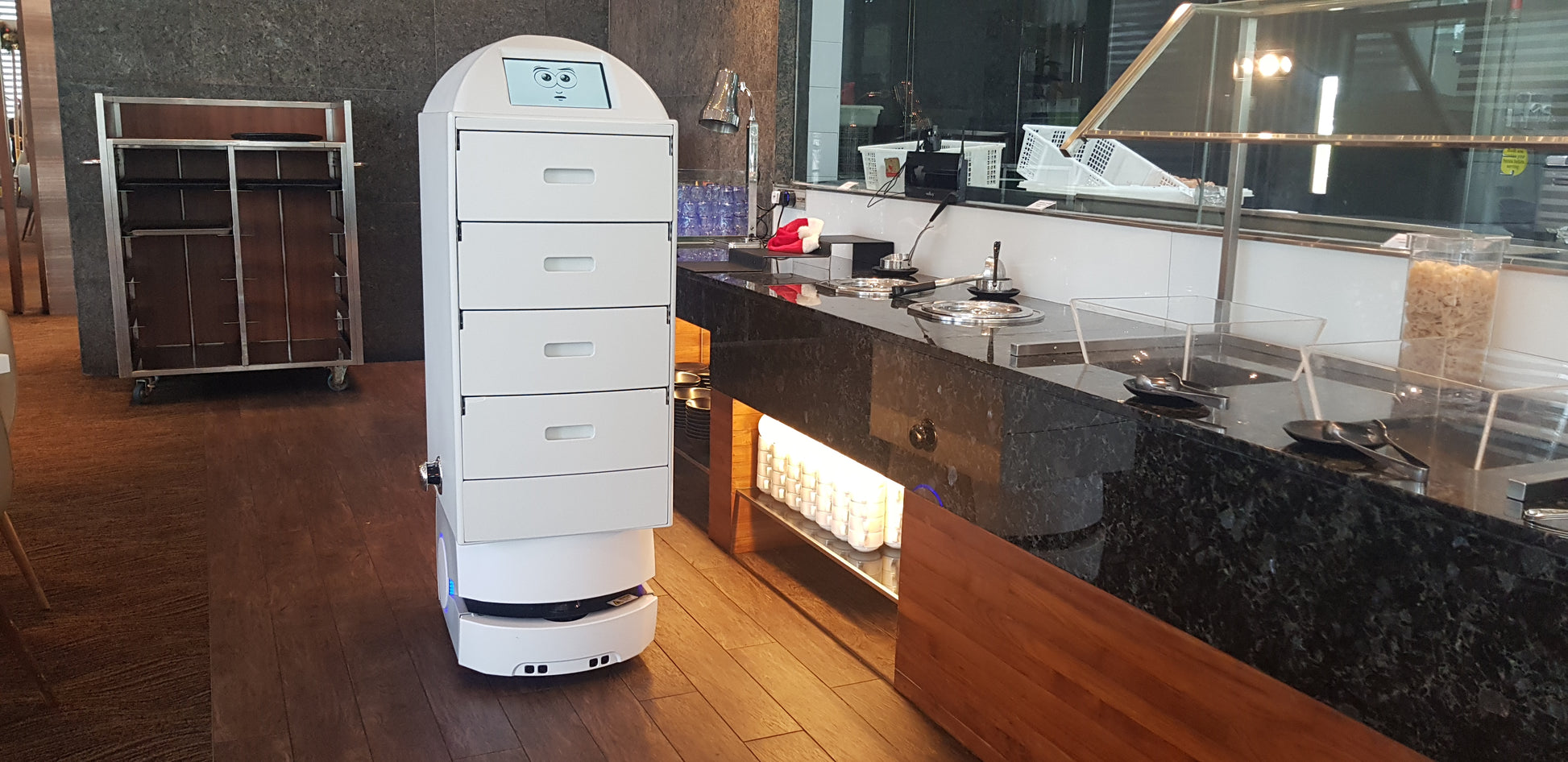

TRV Stack makes up to four deliveries in one trip. Suitable for OR, kitchen, laundry services, medications, and other contact less delivery applications. The Robot does all the runners’ jobs so that your staff has free time to focus on their primary tasks. 3-Layered Safety, Biometric Security, and Pin Code Access. Navigates safely in Small Spaces. The robot does all the runners’ jobs so that your staff has free time to focus on their primary tasks.
Key Features:
Key Features:
- Safety Certified key components used (i.e CE/UL Certified LIDARS, Motor Controllers)
- Premium, reputable key components used (i.e Safety LIDARS are from SICK UK or Equivalent)
- Drives come with 10 Nm Powerful Passive Brakes for enhanced safety.
- 10 Years of AMR Product Development Experience incorporated into Mobile Navigation.
- Our Premium Series houses a "Parallel Safety Monitoring and Controlling Unit" in addition to our standard series' features, suitable for customers who prefer Enhanced Safety Features.
Specifications:
Specifications:
- Material: Aluminum alloy chassis with ABS casing
- Maximum Speed: 1.2 m/s
- Navigation: Autonomous routing by LIDAR SLAM technology
- Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1
- Drive wheels: Differential Drives (BLDC
low noise motors), 2 wheels - Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation
- Docking Station: 100 to 240 VAC, 50 to 60 Hz
